Smart Bar Puller Operation

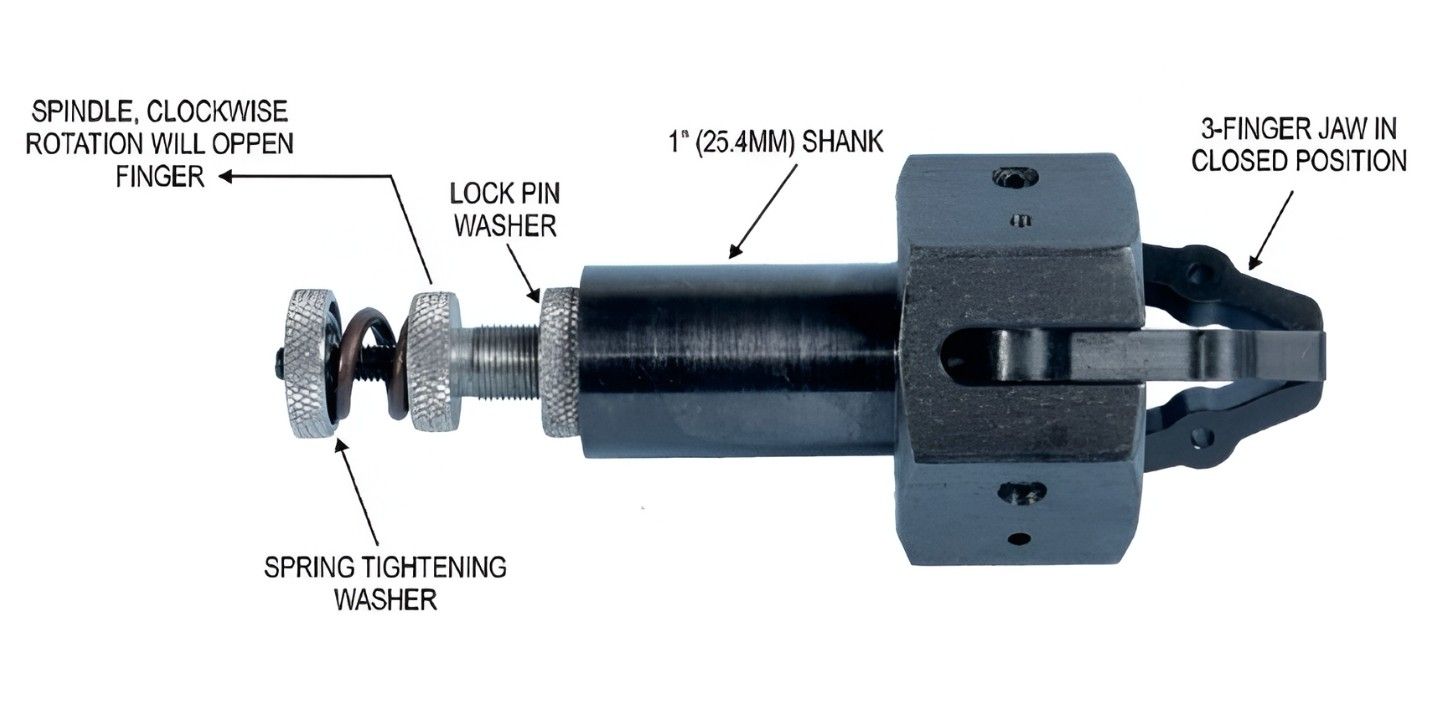

Operation:
-
Assume 3 fingers Jaws in closed position.
-
Open lock pin washer in an anti clockwise direction.
-
Spindle is to be rotated in clockwise direction to open 3 fingers Jaws for desire diameter. (Slightly lower then clamping diameter)
-
Spring and spring tightening washer is used for increasing clamping pressure. (Apply enough pressure by Human finger only)
-
Finally tight lock pin washer with shank.
Features :
-
Shank diameter is available in 3/4", 20 mm, 25 mm and 1".
-
Easy to use.
-
Light in weight.
-
Hardened Jaws are self centred.
-
Gripping range is from 4 mm to 30 mm.
-
Compact design is specially for smaller CNC machines.
-
Jaw hardness is 52 to 55 HRC.
