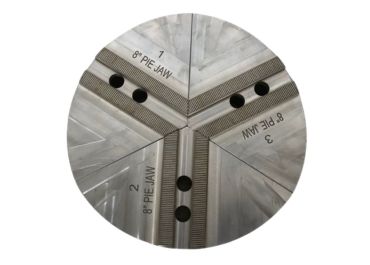

Full Grip (Round/Pie) Jaws

Full Grip (Round/Pie) Jaws, are specially designed to hold round components with complete surface contact. Their circular gripping design ensures uniform pressure distribution for maximum stability and accuracy. These jaws reduce distortion while machining delicate or thin-walled parts. Ideal for precision turning and CNC applications involving cylindrical workpieces.

Features:

Provides 360° full contact for secure round component holding.
Ensures uniform pressure distribution to prevent deformation.
Ideal for gripping cylindrical and thin-walled workpieces.
Enhances stability in CNC and precision machining.
Reduces vibration during turning operations.
It gives high accuracy due to full contact with the workpiece.

Enquire Now!

Product Specifications

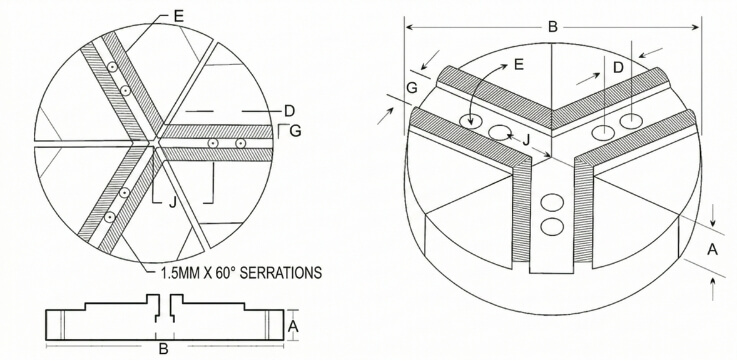

Critical Dimensions				(All Dimensions are in mm)
Chuck Dia Inch	Height Inch A	Pie Diameter B	Center to Center D	Screw Size E	Groove Width G	Hole to Front J	Part Number
6"	50	150	20	10MM	12	40	SCPL-RKT-6C-2.00
6"	75	150	20	10MM	12	40	SCPL-RKT-6C-3.00
8"	50	200	25	12MM	14	55	SCPL-RKT-8C-2.00
	75	200	25	12MM	14	55	SCPL-RKT-8C-3.00
	100	200	25	12MM	14	55	SCPL-RKT-8C-4.00
10"	50	250	30	12MM	16	60	SCPL-RKT-10C-2.00
	75	250	30	12MM	16	60	SCPL-RKT-10C-3.00
	100	250	30	12MM	16	60	SCPL-RKT-10C-4.00
12"	50	300	30	14MM	18	70	SCPL-RKT-12C-2.00
	50	300	30	16MM	21	70	SCPL-RKT-12C-2.08
	75	300	30	14MM	18	70	SCPL-RKT-12C-3.00
	75	300	30	16MM	21	70	SCPL-RKT-12C-3.08
	100	300	30	14MM	18	70	SCPL-RKT-15C-4.00
15"	62	380	43	20MM	22	95	SCPL-RKT-15C-2.50
15"	100	380	43	20MM	22	95	SCPL-RKT-15C-4.00

Available in Aluminum & Steel material specify “SR” for Steel & “AR” for Aluminum at the end of part number.
(Example: SCPL-RKT-10C-2.00-SR)
(Example: SCPL-RKT-10C-2.00-AR)

*We also manufacture Jaws in various pitches i.e. 2 mm x 60°, 2.5 mm x 60°, 3 mm x 60°, 1/16" x 90°, 3/32" x 90° and any other pitch on request.*

*We manufacture Jaws from aluminum on request.*
