The super thin universal Scroll Operated Square Chuck gives greater Z-axis machining & is Ideal for pallet applications.
-
The End Surface Clamping Permits Several Chucks to be mounted on the worktable.
-
Elongated Slots allow fast & easy positioning on the worktable using T-bolts rather than mounting connecting plates.
-
Top Soft Jaws are also available.
Product Specifications of Self Centering Super Thin Square Chucks
Product Specifications

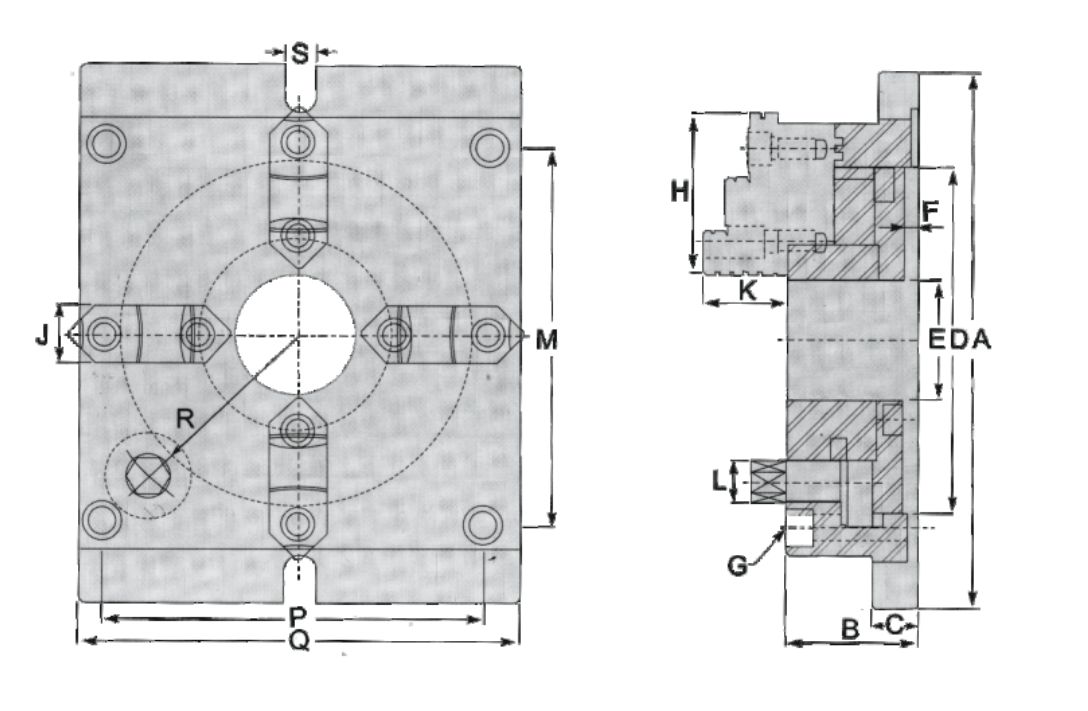

| SPEC./MODEL | A | B | C | D | E | F | G | H | J | K | L | M | P | Q | R | S | Max. Dia external | Gripped by Internal | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SC-6 | 215 | 57 | 18 | 130 | 40 | 5 | 4-M10 | 68 | 26 | 39 | 14 | 144 | 144 | 165 | 66 | 18 | Ø4–Ø128 | Ø55–Ø128 | 13.7 |
| SC-8 | 250 | 65 | 20 | 160 | 55 | 5 | 4-M12 | 82 | 28 | 43 | 17 | 174 | 174 | 200 | 83 | 18 | Ø5–Ø162 | Ø62–Ø162 | 21.5 |
| SC-10 | 310 | 72 | 22 | 200 | 70 | 6 | 4-M14 | 93 | 32 | 50 | 21 | 218 | 218 | 250 | 103 | 18 | Ø6–Ø200 | Ø72–Ø200 | 35.6 |
| SC-12 | 380 | 85 | 25 | 260 | 100 | 7 | 4-M16 | 117 | 40 | 56 | 23 | 274 | 274 | 310 | 135 | 22 | Ø10–Ø265 | Ø90–Ø265 | 61.7 |
