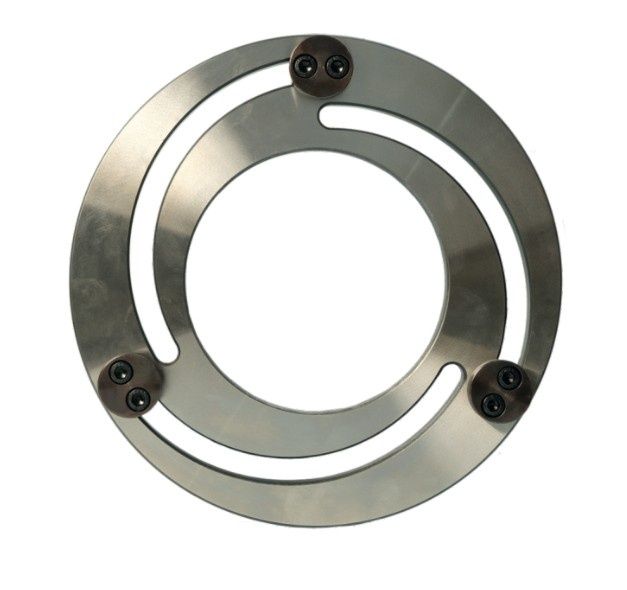

Jaw Boring Rings Features
Features:
-
For Precision Boring of Soft Jaws.
The Operation process is as under:
- Set the Jaw in correct position
- Adjust the Jaw Boring Rings to fit the bolt holes
- Lock the chuck to clamp the Jaw Boring rings
- Machine the required size
- Unlock the chuck
Product Specifications

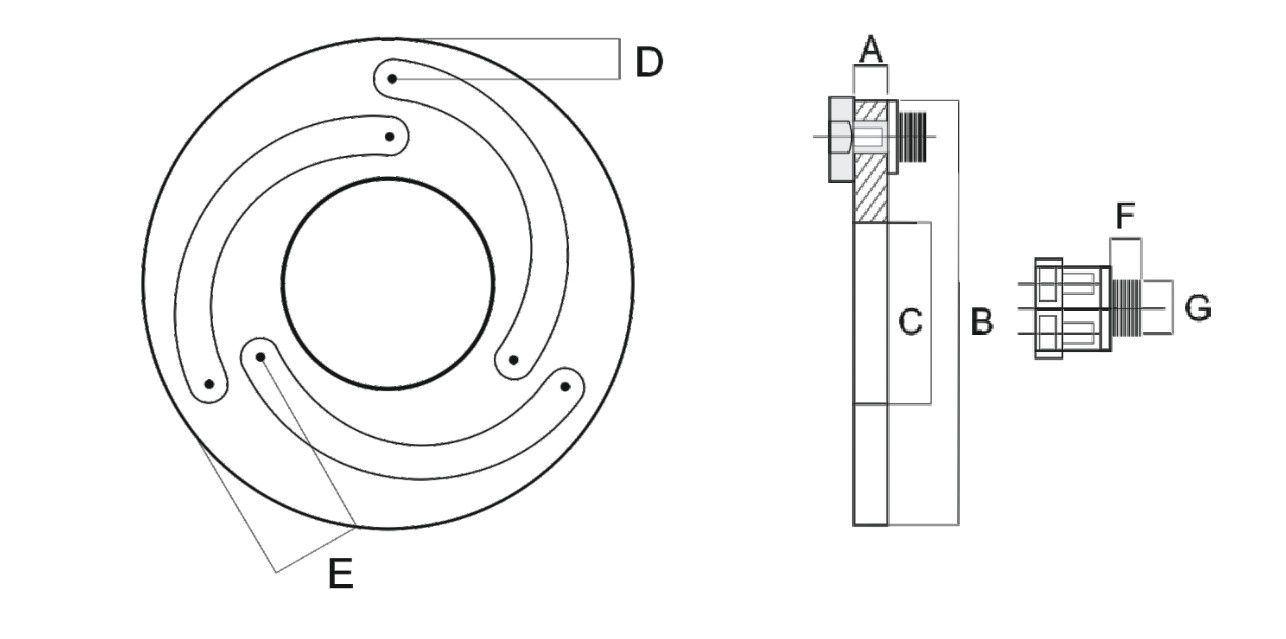

| Product | A | B | C | D | E | F | G | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| BR-5" | 12 | 140 | 60 | 12 | 28 | 9 | 13 | 1.2 |
| BR-6" | 12 | 168 | 80 | 12 | 32 | 9 | 16.5 | 1.5 |
| BR-8" | 12 | 218 | 115 | 15 | 36 | 9 | 18.5 | 2.4 |
| BR-10" | 12 | 258 | 150 | 17 | 40 | 9 | 18.5 | 3.1 |
| BR-12" | 15 | 316 | 188 | 21 | 50 | 9 | 22.5 | 5.4 |
| BR-15" | 20 | 380 | 230 | 23 | 52 | 16 | 31 | 10.1 |
